MF4600 Digital Air Gas Flow Meter For Mass Flow Measurement 100pa

Name: MF4600 Digital Air Gas Flow Meter For Mass Flow Measurement 100pa
Brand: Yunyi
Price: 350 USD

China MF4600 Digital Air Gas Flow Meter For Mass Flow Measurement 100pa wholesale

Brand Name : Yunyi

Model Number : MF4600

Certification : /

Place of Origin : China

MOQ : 1

Price : $350~$450

Payment Terms : L/C, D/A

Supply Ability : 500 Piece/Pieces per Month

Delivery Time : 7-10days

Packaging Details : Standard

Repeatability : ±0.8%

Accuracy : ±2.5+0.5%

Pressure loss : 100pa

Temperature : -10~55℃

Power supply : 24VDC

Product name : Intelligent water oil clamp on LCD display ultrasonic flow meter

Contact Now

Description

MF4600 series mass flow meters are made with proprietary MEMS sensing technology. It applies for clean and dry gas metering and control. The meter is designed with the structure of a rotameter but with the full capability of a digital gas mass flow metrology and LED display. Both instant and accumulated flowrate can be read and displayed. The front buttons let user to access and adjust the parameters as well as stored data. The standard RS485 Modbus enables the remote access and integration.

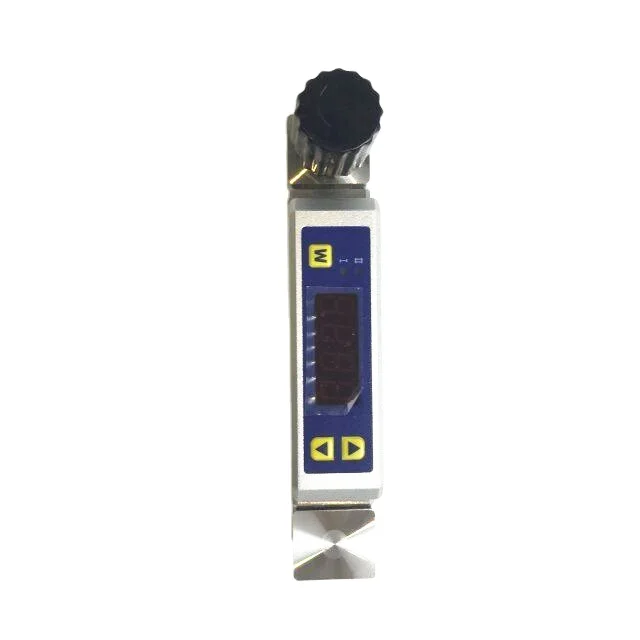

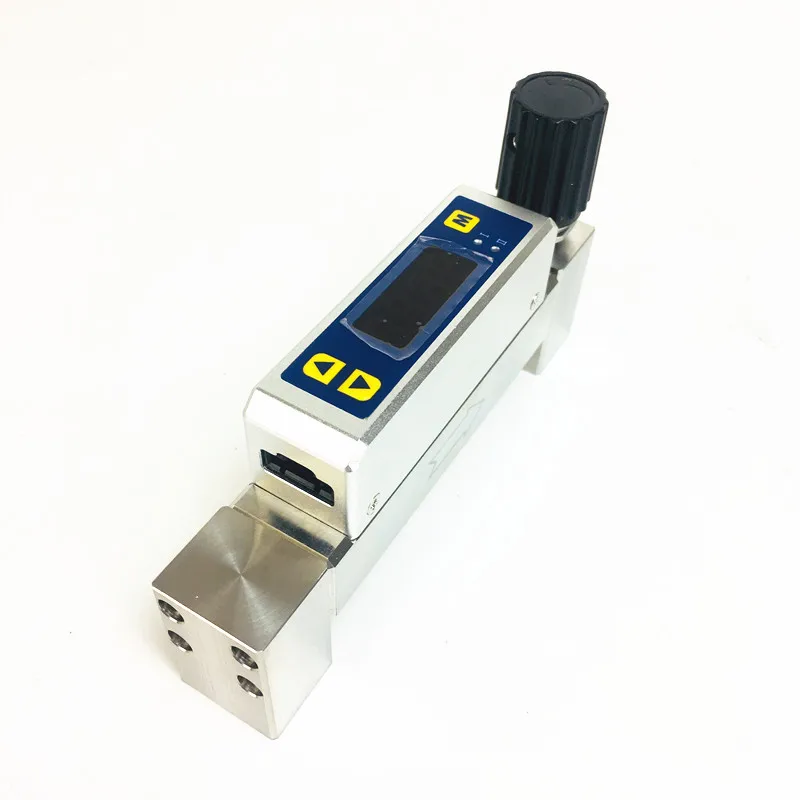

Detailed Images
MF4600 Digital Air Gas Flow Meter For Mass Flow Measurement 100pa

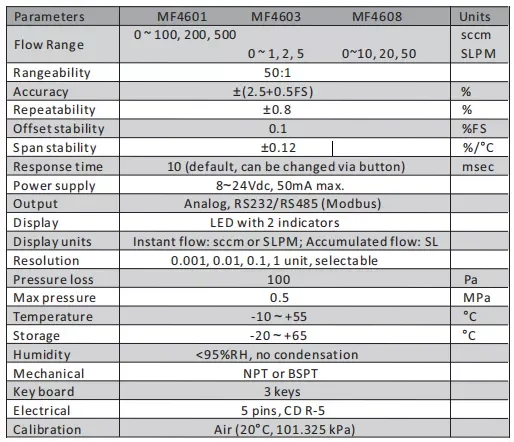

Specification

MF4600 Digital Air Gas Flow Meter For Mass Flow Measurement 100pa

Features

Direct mass flow measurement with high accuracy

elements for extended rangeability over 100: 1

Easy remoteaccessible user interface with RS485 Modbus and/ or linearized analogdata

Bright LED display for instant and accumulated flowrate with on-site accessvia front buttons

Record flowrate pattens with overrange indication

Easy for remote communication and integration

Flowrange and mechanical dimensions can be fully customized
