FS6122 I2C Oxygen Gas Flow Sensors Mass Air Flow Meter

Name: FS6122 I2C Oxygen Gas Flow Sensors Mass Air Flow Meter
Brand: YunYi
Price: 89.0 USD

China FS6122 I2C Oxygen Gas Flow Sensors Mass Air Flow Meter wholesale

Brand Name : YunYi

Model Number : FS6112

Place of Origin : China

MOQ : 1 piece

Price : USD89.0 PER PIECE

Payment Terms : T/T, Western Union

Supply Ability : 500 Unit/Units per Week Gas Air Mass Flow Meters, Siargo CO2 Air Flow Meter

Delivery Time : 7days

Packaging Details : Standard carton box

Warranty : 1 year

Customized support : OEM

Type : Variable Area Air & Gas Flowmeters

Model : FS6122

Flow Range : - 250 ~ +250SLPM

Accuracy(Total Error Band) : ±(2.5+0.5FS) %

Output : Linear, Analog/I2C (14 bit)

Analog Output Range : 0.5 ~ 4.5 Vdc

Product Name : Oxygen Flow Sensor Gas Flow Sensors, Mass Air Flow Meter

Contact Now

Description of oxygen Flow Sensor Gas Flow Sensors FS6122 Mass Air Flow Meter

FS6122series mass flow sensors are specially designed for persona lventilators for CPAP (continuous positive air way pressure). The sensorinte grates MEMS massflow sensor with a MEMS pressure sensor that provides the necessary information for the proper performance of the state-of-the-art CPAP ventilators. The miniature package notonly provide space saving for the ventilat or butalso provides high accuracy and fast response for both mass flow rate measurement and gauge pressure data while with a very low pressur edropand small dead space.

Features of oxygen Flow Sensor Gas Flow Sensors FS6122 Mass Air Flow Meter
! Measures mass flow rate and gauge pressure
! Fast response time
! Highly sensitive in small flow rate
! Low power consumption
! Specially designed for medical equipment

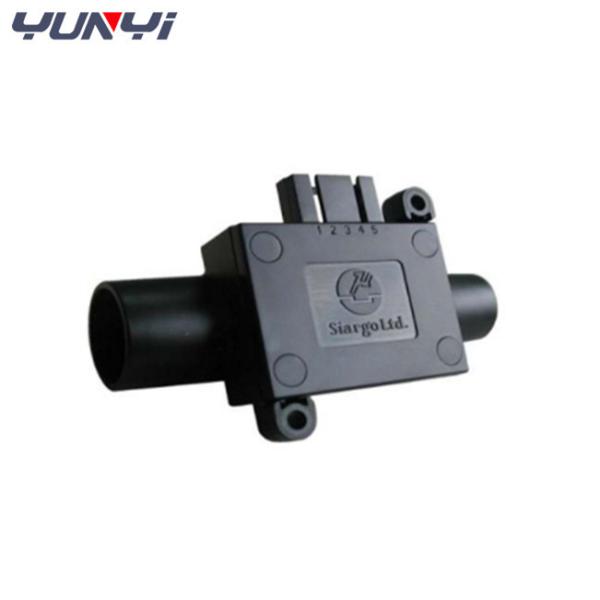

Detailed Images of oxygen Flow Sensor Gas Flow Sensors FS6122 Mass Air Flow Meter

Specification of oxygen Flow Sensor Gas Flow Sensors FS6122 Mass Air Flow Meter

Medical CPAP Sensor Fusion, oxygen Flow Sensor, Mass Air Flow Meter
Parameter	FS6122	Unit
Flow Range	- 250 ~ +250	SLPM
Accuracy(Total Error Band)	±(2.5+0.5FS)	%
Output**	Linear, Analog/I2C (14 bit)
Analog Output Range	0.5 ~ 4.5	Vdc
Response Time	2	ms
Pressure Sensor
Pressure Type	Gauge
Pressure Range	-5 ~ +40 / -5 ~ +100	cmH2O
Accuracy	±1.0	%FS
Output**	Linear, Analog/I2C (14 bit)
Analog Output Range	0.5 ~ 4.5	vDC
Update Time	<1	ms
Temperature and Humidity Sensors
Temperature Range	-10 ~ +60	℃
Temperature Accuracy	±0.5	℃
Humidity Range	0 ~ 100 (No Icing or condersation	%RH
Humidity Accuracy	±2.0 (20 ~ 80%RH; ±5.0 max (other ranges)	%RH
Humidity Resolution	0.7	%RH
Humidity Response time (63%)	5.0 (25 ~ 75%RH)	sec
Humidity Stability	0.5	%RH/year
Other Specifications
Gas Type	Air
Supply Voltage	5.0 ± 5%	Vdc
Output Pin Shape	6 Pins, NS-TECH CD R-6

Note: * The above parameters are applicable at 20℃ and 101.325kPa;
** 14 bit for I2C.
*** Base on the working pressure of the pressure sensor.

Mechanical Dimensions of oxygen Flow Sensor Gas Flow Sensors FS6122 Mass Air Flow Meter

Production Selection of oxygen Flow Sensor Gas Flow Sensors FS6122 Mass Air Flow Meter
