Anti Clog Static Submersible Level Sensor RS485 For Sewage Sludge

Name: Anti Clog Static Submersible Level Sensor RS485 For Sewage Sludge
Brand: yunyi
Price: 1 USD

Brand Name : yunyi

Model Number : YD-

Certification : CE

Place of Origin : china

MOQ : 1

Payment Terms : L/C, D/P, T/T, Western Union

Supply Ability : 1000pcs/month

Delivery Time : 10days

name : High Temperature Anti Orrosion and Anti Clog Static Pressure Submersible Liquid Level Meter

Type : paste Sewage Sludge Level Sensor

Medium temp : -20 to 80°C

Measurement object : liquid

Accuracy : ±0.1% ±0.2% ±0.3% ±0.5%

Original : china, xian

Contact Now

Description High Temperature Anti Orrosion Static Pressure Submersible Liquid Level Meter

High temperature anti orrosion and anti clog static pressure submersible liquid level meter are based on the principle that the measured liquid static pressure is proportional to the height of the liquid. It uses the piezoresistive effect of diffused silicon or ceramic sensitive elements to convert the static pressure into an electrical signal. The built-in temperature sensor PT100 can At the same time measure the liquid temperature. Coupled with a dedicated digital circuit, after signal amplification, linear compensation, anti-interference, anti-surge protection and other signal processing, it is made into an integrated product that can measure liquid level and temperature at the same time

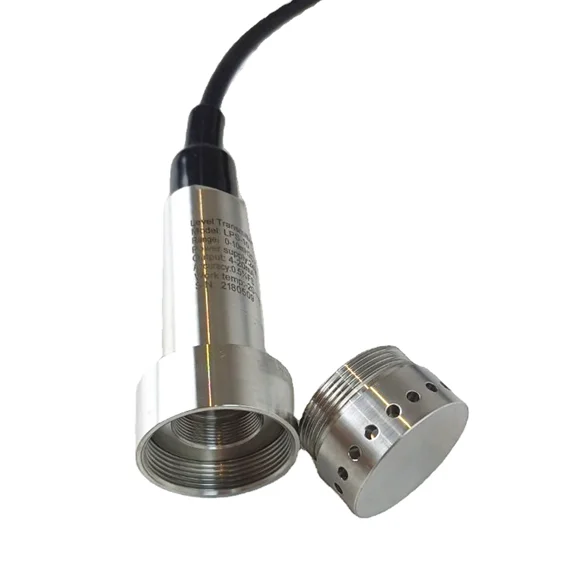

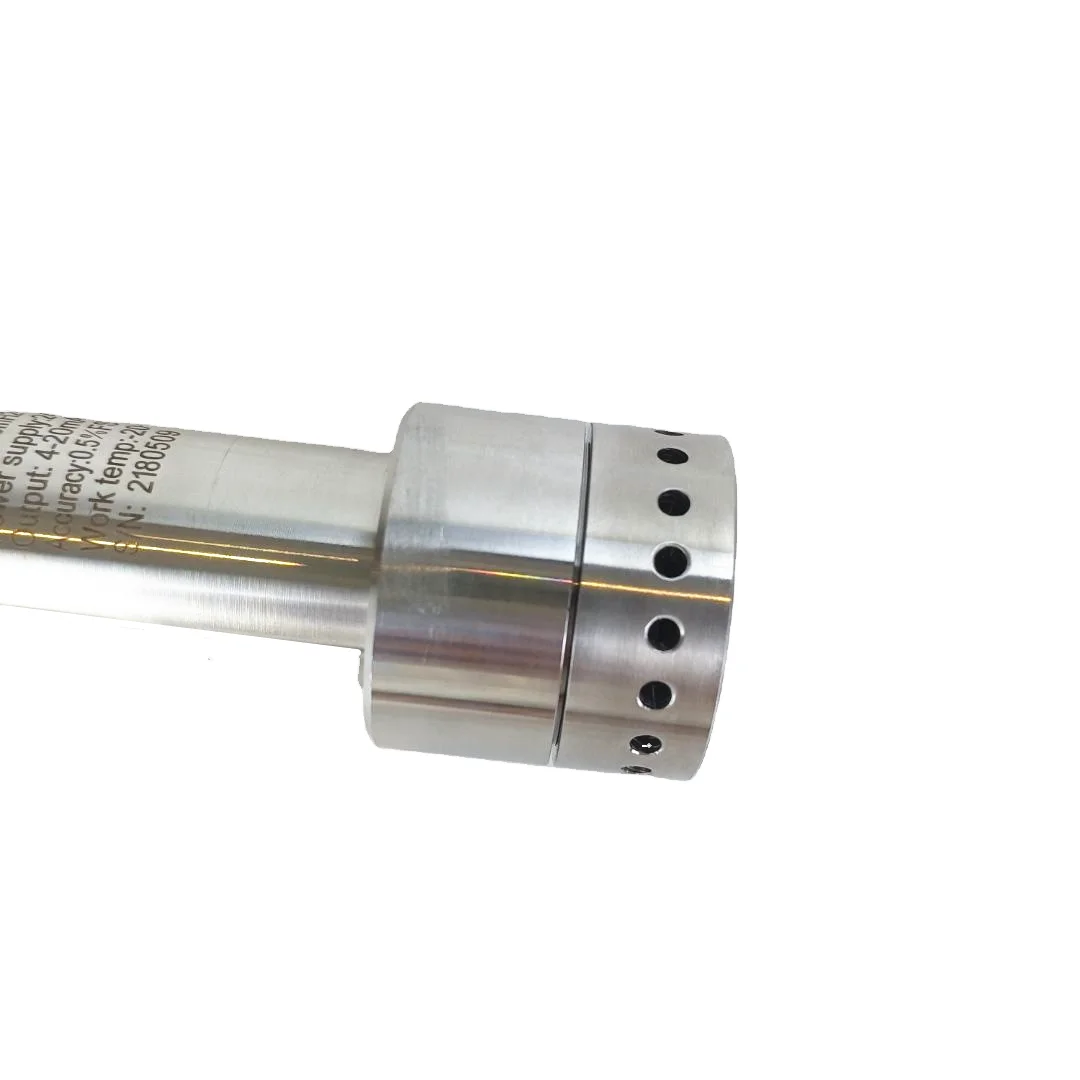

Detailed Images High Temperature Anti Orrosion Static Pressure Submersible Liquid Level Meter

Anti Clog Static Submersible Level Sensor RS485 For Sewage Sludge

Specification High Temperature Anti Orrosion Static Pressure Submersible Liquid Level Meter

Type of pressure	Gauge pressure, sealing pressure	Pressure range (mH20)	1,2,3,5,10,20,30(other range oem)
Signal output	4~20mA RS485 Hart protocol	Signal line specifications	2 Wire
Supply voltage	12~36VDC	Precision	±0.5%FS ±1%FS
Zero temperature drift	±0.02%FS/℃	Sensitivity temperature drift	±0.02%FS/℃
Long-term stability (1 year)	±0.5%FS/℃	Medium temperature	-10~+85℃(Can't freeze)
Storage temperature	-20~+80℃	Allow overload	200%FS
Medium	Liquid	Protection level	IP68
Electrical connection	Cable connection

Applications High temperature anti orrosion static pressure submersible liquid level meter

Petroleum industry, chemical industry, metallurgy industry, electric power, hydrology etc.
Boats&ships and aviation industry
Hydraulic pressure and pneumatic control system
