316L SS Submersible Level Sensor , Anti Coorosion Submersible Temperature Probe

Name: 316L SS Submersible Level Sensor Anti Coorosion Submersible Temperature Probe
Brand: Yunyi
Price: 20 USD

China 316L SS Submersible Level Sensor , Anti Coorosion Submersible Temperature Probe wholesale

Brand Name : Yunyi

Place of Origin : China

MOQ : 1

Price : USD$20--65/UNIT

Payment Terms : D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 500 Uint per week

Delivery Time : 5-10working days

Packaging Details : Standard export carton packing.

Accuracy : 0.25%FS

Output : 0~10VDC (three wire)

Range : 0-5-10-20-50-100-200m

Connection : G1/4, G1/2, 1/2NPT, 1/4NPT, M12 * 1.5, etc. (can be customized)

Medium temperature range : -20~85°C

Response time : ≤5mS

Power supply : 24V Dc(15~30VDC)

Stability : ≤±0.15%FS/ year

Contact Now

316L SS Submersible Level Sensor 4-20mA 0.25%FS Submersible Water Level Transmitter Anti Coorosion Anti Leakage

316L SS material

Anti- coorosion

Four-hole Cone design double pendulum Induction film

Protection design with 6 crimp rings

Anti- leakage

Application 316L SS Submersible Level Sensor 4-20mA 0.25%FS Submersible Water Level Transmitter Anti Coorosion Anti Leakage

Input Hydrostatic Level Sensor / Tank Water Level Sensor used in the liquid level measurement of the water tank, oil level in oil tank, water sink (oil sink), wells, water towers, river, reservoir, sewage treatment equipment, sea water, groundwater monitoring, etc.

Technical Data 316L SS Submersible Level Sensor 4-20mA 0.25%FS Submersible Water Level Transmitter Anti Coorosion Anti Leakage

Pressure type	Gauge pressure
Range	0-5-10-20-50-100-200m
Output	0~10VDC (three wire)
Accuracy	0.25%FS
Power supply	24V Dc(15~30VDC)
Medium temperature range	-20℃~85°C
Response time	≤5mS
Stability	≤±0.15%FS/ year
Relative humidity	0-95％RH
Load resistance	Current output type Max800Ω/voltage output type more than 50kΩ
Medium Temperature	-20℃~85°C
Ambient Temperature	-20℃~85°C
Seal grade	IP68
Cinnection thread	Input type
Material of connection thread	SS304

Ordering guide OF 316L SS Submersible Level Sensor 4-20mA 0.25%FS Submersible Water Level Transmitter Anti Coorosion Anti Leakage

SLK-200	Input Liquid Level transmitter
	Code	Measurement Range
	1	(0-1)mH2O
	2	(0-5)mH2O
	T	Special specification
		Code	Accuracy grade
		1	0.2
		2	0.5
			Code	Explosion proof type
			M	Explosion proof type
			N	Standard type
			I	EX iaⅡCT6
			D	EX dⅡBT4
				Code	Display or not
				M0	display
				M1	None
				M2	LCD digital display
					Code	Output
					E	4~20mA
					V	0-5V
					S	0-10V
					T	Special specification
						Code	Probe material
						A1	SUS304
						A2	SUS316L
							Code	Material
							B	Cable sheath material
							B1	Polyethylene rubber
							B2	PTFE
							B3	Teflon
								Code	Power supply
								V1	24V DC
								V2	Special specification

316L SS Submersible Level Sensor , Anti Coorosion Submersible Temperature Probe

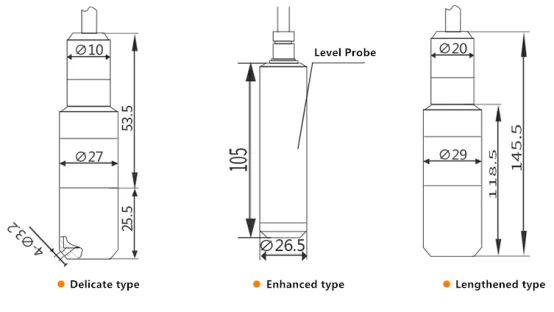

External dimension

316L SS Submersible Level Sensor , Anti Coorosion Submersible Temperature Probe

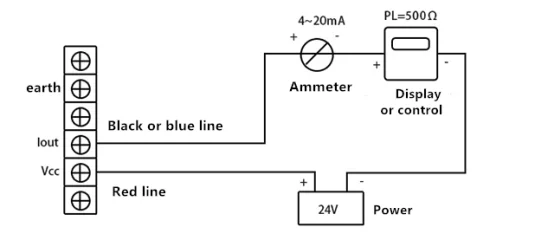

Connection diagram

316L SS Submersible Level Sensor , Anti Coorosion Submersible Temperature Probe

Installation notice

316L SS Submersible Level Sensor , Anti Coorosion Submersible Temperature Probe

FAQ

Q: How long will you reply me?
A: We will contact you as soon as possible but within 12 hours.

Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.

Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.

Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.

Q: How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).

Q: What certificates do you have ?
A: ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.

Q: Could I visit your factory?
A: Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.

Q: What's your warranty terms?
A: We offer 12 months warranty time.

Q: Can you provide OEM & Customized service?
A: Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you
