Description Piezoelectric Hydraulic Water Fuel Air Oil Pressure Sensor
The YD380 series pressure transmitter is small in size, compact in structure, stable in performance, and designed and processed in combination with rich experience in the field of construction machinery and hydraulics. It has a very high cost performance.
This series of pressure transmitters provide a variety of accuracy indicators and connection methods. It has the characteristics of easy installation, high overload, strong media compatibility, and wide adaptability; the internal circuit has excellent anti-interference performance, and the stainless steel structure guarantees its sturdiness and durability. It can be used in various environments and climates, so it is widely used in various fields . In addition, we can also provide short-term
Different pressure units and process connections that meet the requirements of their applications.

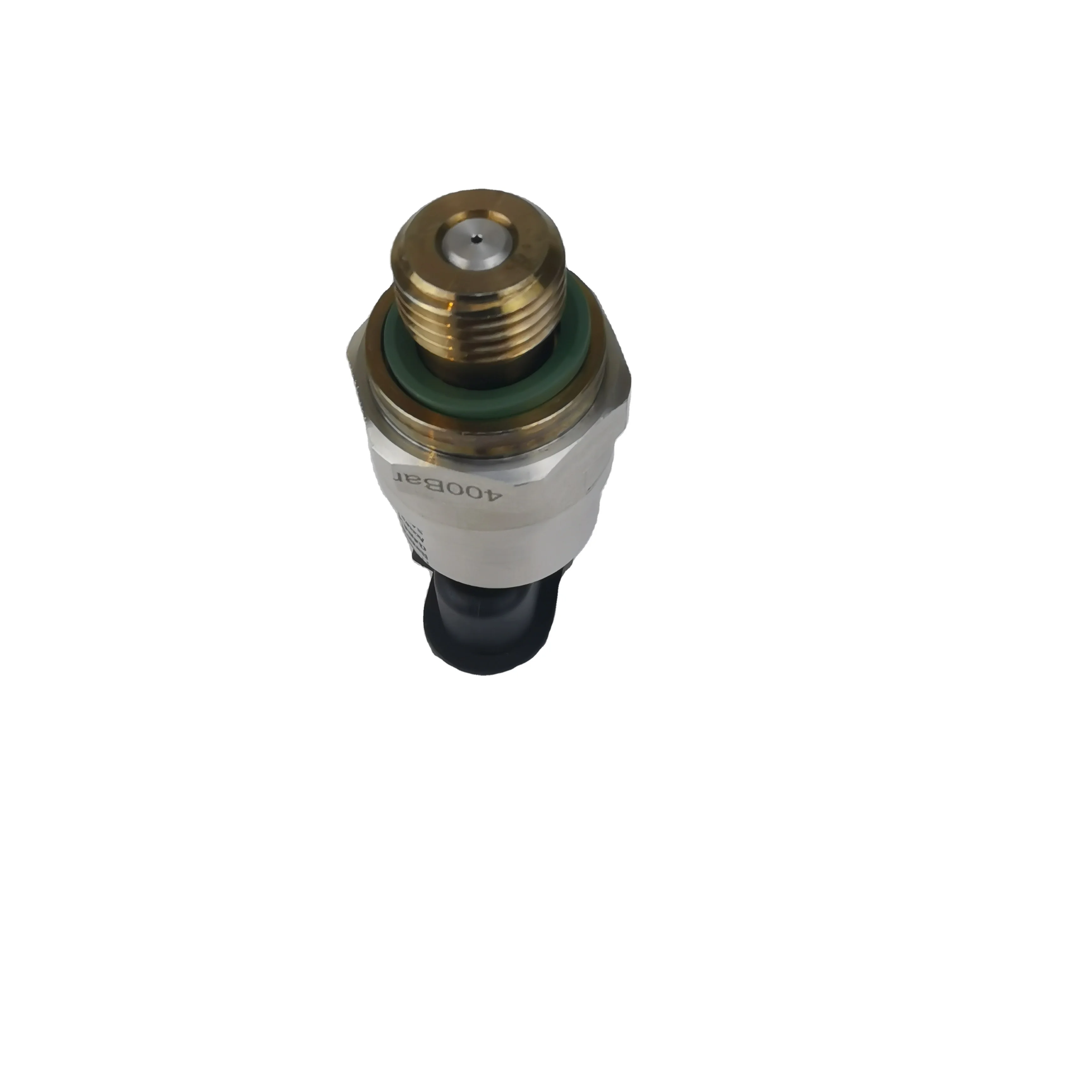

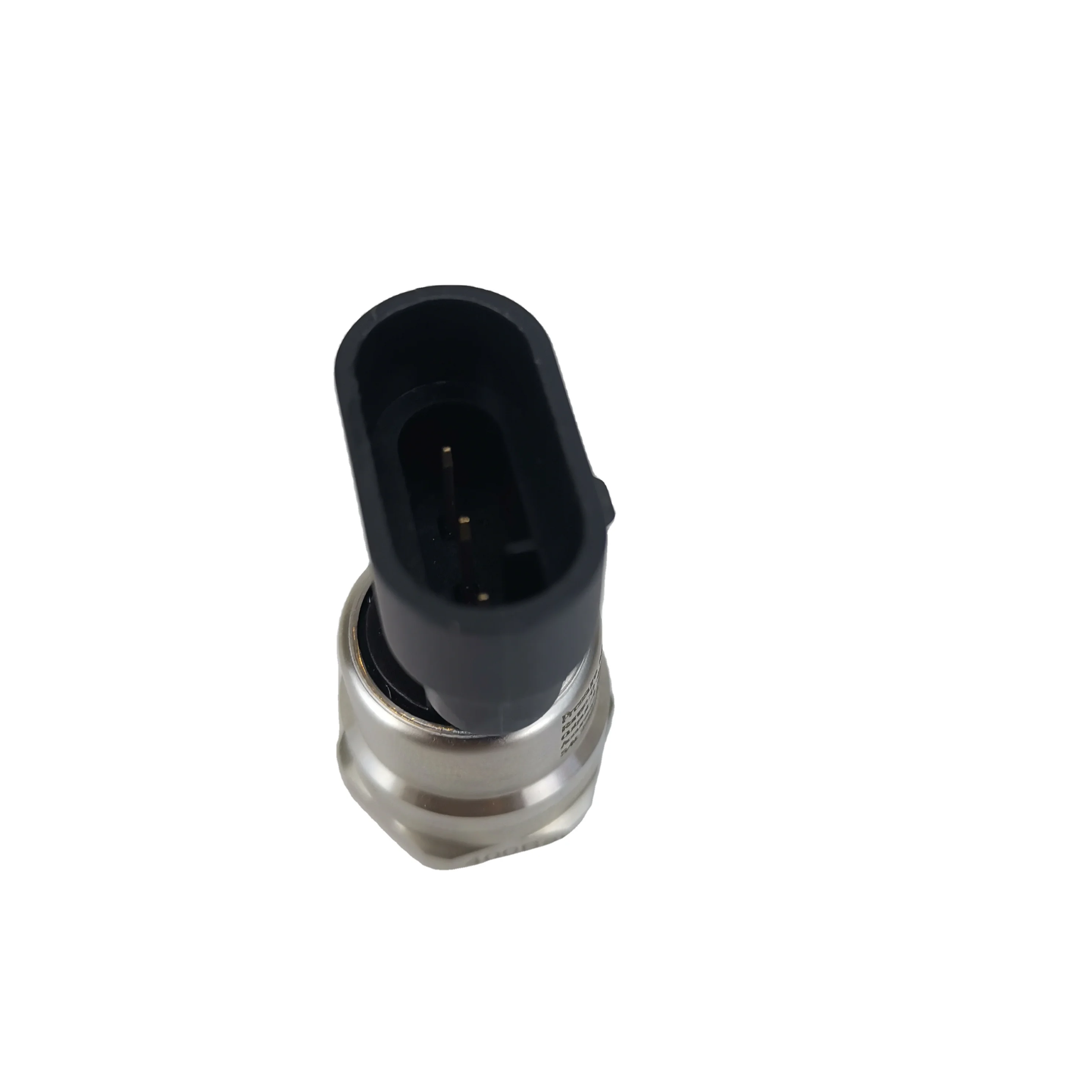

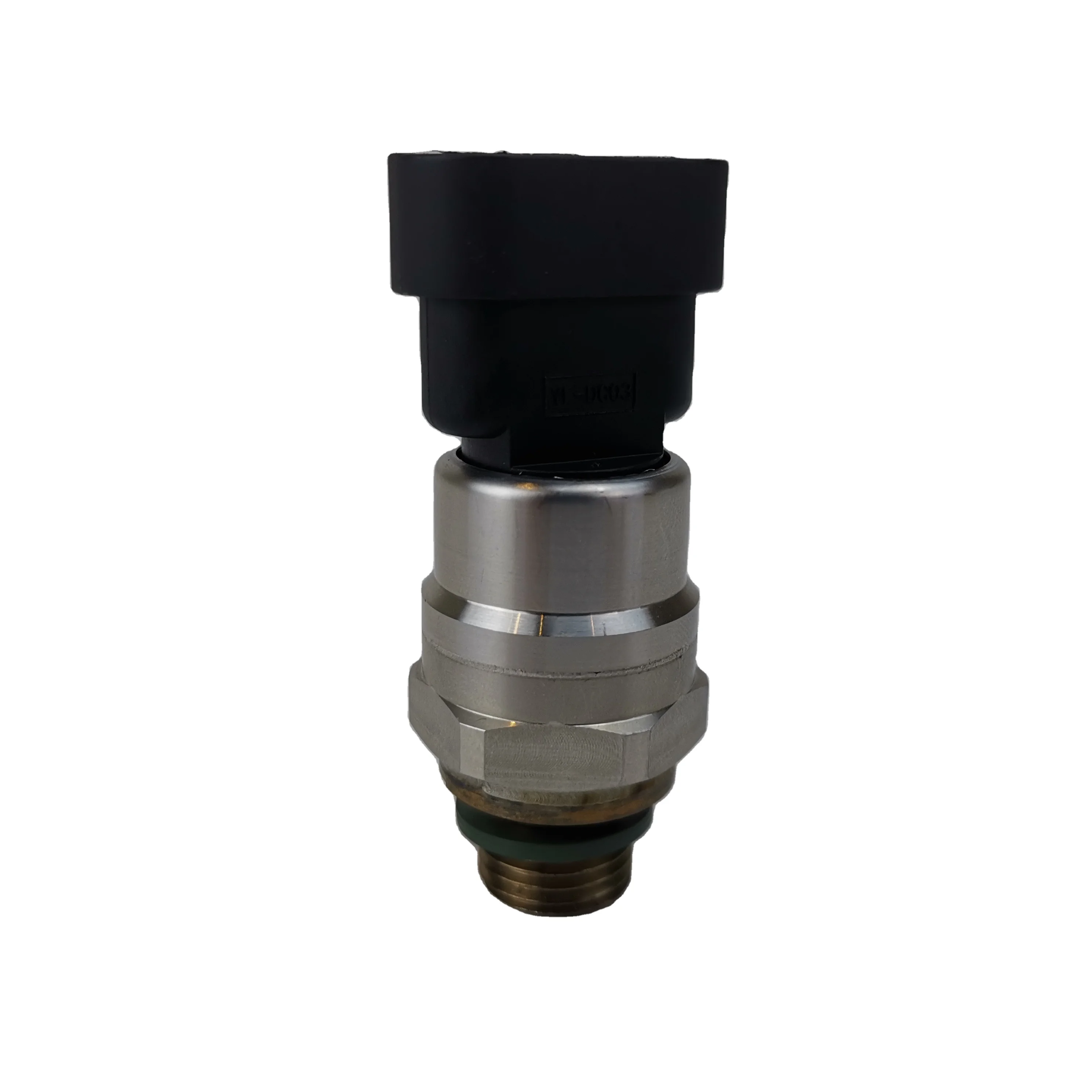

Detailed Images Piezoelectric Hydraulic Water Fuel Air Oil Pressure Sensor
Specification Piezoelectric Hydraulic Water Fuel Air Oil Pressure Sensor
| Measuring range | 0...200...250...300...400...500...600bar Any range between options |
| Overload pressure | 3 times Rated pressure |
| Type of pressure | Gauge pressure/sealed gauge pressure |
| Measuring medium | Gas or liquid compatible with stainless steel |
| measurement accuracy | ±1%FS; ±0.5%FS; ±0.25%FS |
| Long-term stability | ≤±0.2%FS/year |
| Operating temperature | -40...+125℃ |
| Zero temperature coefficient | Typical:±0.02%FS/℃; Max:±0.05%FS/℃ |
| Sensitivity temperature coefficient | Typical:±0.02%FS/℃; Max:±0.05%FS/℃ |
| Signal and power supply | Optional signal | Output signal | Supply voltage |
| Current (2-wire system) | 4...20mA | DC 8...32V |
| Voltage (3-wire system) | DC 0...10V | DC 12...32V |
| | DC 0...5V | DC 8...32V |
| | DC 1...5V | DC 8...32V |
| | DC 0.5. 4.5V | DC 8...32V |
| Proportional voltage (3-wire system) | DC 0.5. 4.5V | DC 5V±10% |
| *Other output signals can be provided according to customer requirements |
| Load Ω | Current (two wires): ≤[(power supply voltage -7.5V)/0.02A] |
| Voltage (three wires):≥10k |
| Total current consumption | Current (2-wire system): signal current, maximum 25mA |
| Voltage (3-wire system): :5mA |
| Impact resistance | 100g,Back peak sawtooth half-sine trapezoid, continuous 6ms |
| Anti-vibration | ≤±0.1%FS(X,Y,Z axis,200Hz/g) |
| Insulation resistance | >100MΩ 500Vdc Motivated |
| Response time | ≤2ms |
| Weight | About 150g not included cable |
| Resolution | Infinitely small (theoretical), 1/100000 (usually) |

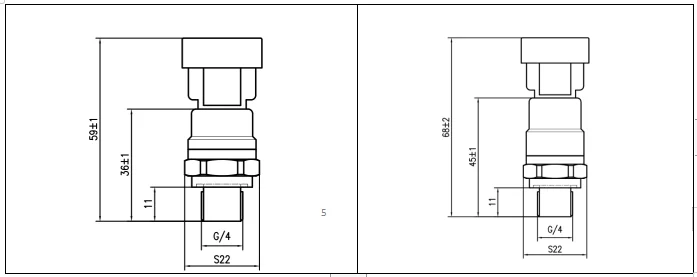

Dimension Piezoelectric Hydraulic Water Fuel Air Oil Pressure Sensor
![4.5V Piezoelectric Fuel Oil Pressure Sensor Hydraulic Water]()
![4.5V Piezoelectric Fuel Oil Pressure Sensor Hydraulic Water]()
Features Piezoelectric Hydraulic Water Fuel Air Oil Pressure Sensor
Measuring range: 0...200...300...400...600bar
Accuracy: 0.5%FS or 0.25%FS
Output: 4...20mA, DC0...10V, DC0...5V or others
Electrical connection: DEUTSCH connector, Hirschmann connector, M12*1 circular aviation connector, 1 meter long cable straight out
Process connection: G1/4 or other
Applications Piezoelectric Hydraulic Water Fuel Air Oil Pressure Sensor
Machinery Manufacturing
Shipbuilding
Measurement and control technology
Hydraulic control system
Pumps and compressors
Flow meter matching

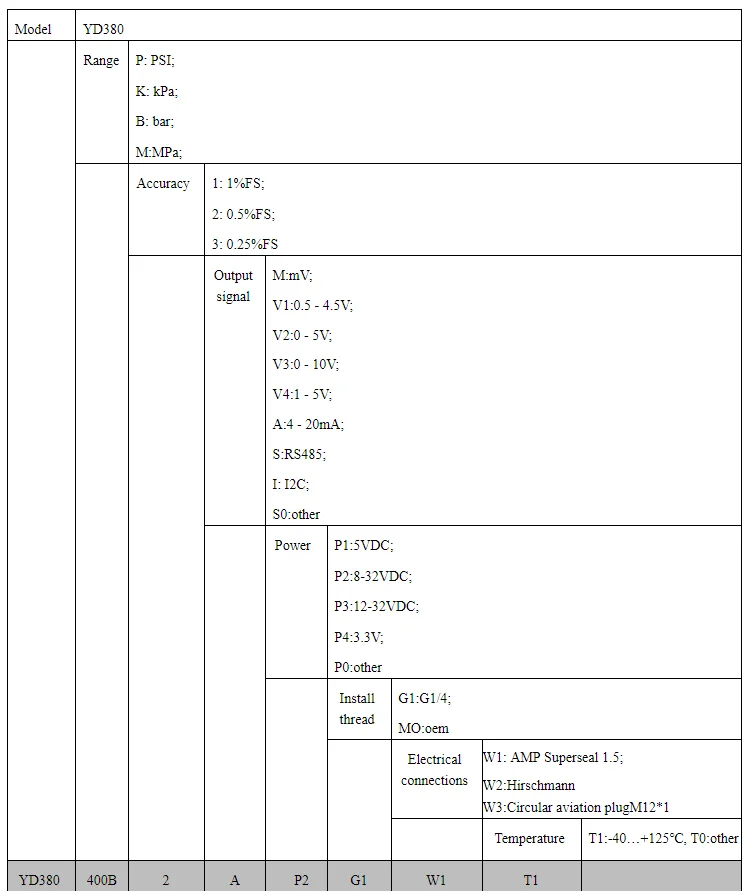

Selection Guide dPiezoelectric Hydraulic Water Fuel Air Oil Pressure Sensor
![4.5V Piezoelectric Fuel Oil Pressure Sensor Hydraulic Water]()
